Executions List

The list of operation executions allows you to view and manage the operation executions performed on various types of OpenGate entities: devices, subscribers, and subscriptions.

How it works

Below are the actions that can be performed both within the widget and on the displayed data.

Filter by Columns

Basic Filter

Perform a basic search by entering text that will filter by predefined fields.

Advanced Filter

Perform a search by selecting the fields to filter by and how to filter by them.

The following actions can be performed:

Download: Download data in CSV format
Execute operation: Opens the operation execution wizard
Show history operation: A switch that allows viewing either in-progress or completed executions.
Capture screen: Takes a screenshot of the widget.
Duplicate widget: Creates a duplicate of the widget on the dashboard.
Copy widget: Copies the widget to another dashboard.
Change widget location: Moves the widget to another dashboard.

Selection and Operations on Entities

The following actions can be performed on the selected entities of the executions:

Filter: Data will be displayed filtered based on the selected entities
Execute operations: Execute an operation on the entities

Sort and Temporarily Hide Columns

Actions per Entity

The following actions can be performed:

Execute operation: Execute an operation on the execution’s entity
Open device information: Opens a temporary dashboard displaying information related to the execution’s entity
Open device details: Opens the information widget of an entity with the execution entity’s data
Execution details: Opens the execution information widget
Edit entity: Edit the entity by opening the corresponding wizard for the type of the execution’s entity

Configuration

General

Boxed: widget will be displayed with background in dahsboard.
About: widget description in Markdown format.
Title: widget title. It can be configured to remain fixed in the widget or only be displayed when it receives focus.
Toolbar: configures the behavior of the widget bar on the dashboard, allowing you to hide it, hide it when not in use, or leave it always visible.
Refresh Frequency: allows configuring the data refresh frequency displayed in the list.
Extra actions: allows user to add new specific actions to the widget with your own code.

You can add a new one by pressing the New button.

Once you added a custom action it can be modified later by pressing the name in the list.

In order to remove the custom action click the delete icon button on the right.

In extra actions you can write your own code were you can open other dashboards, entities dashboards or execute wizards.

You can find all available functions and methods in Extra parameters

Cell Configuration

Alias: Modify the column name. If nothing is added, it will use the default configured name.
Show entity actions: Allow displaying the actions menu when selecting its value in the cell. If the column is an identifier, this field will be enabled.
Hidden column: Enabling this option will hide the column from the user. This is useful when you need the data for formatting purposes, as only the data required in the list will be available.
Options:
- Modify the cell’s width and horizontal alignment of its content.
- Format the cell’s value.
Pagination: Configure the number of rows to display per page.

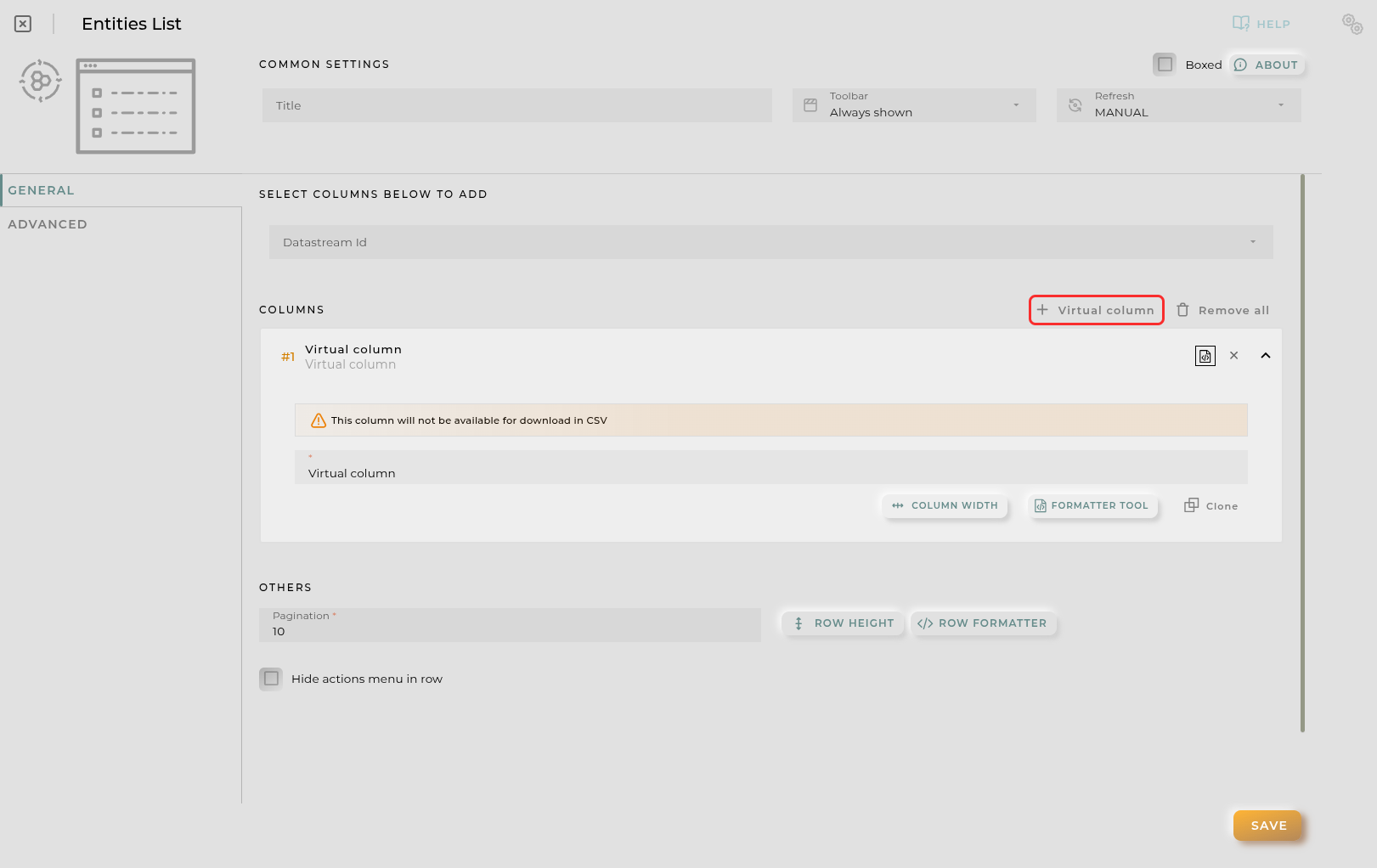

Virtual columns

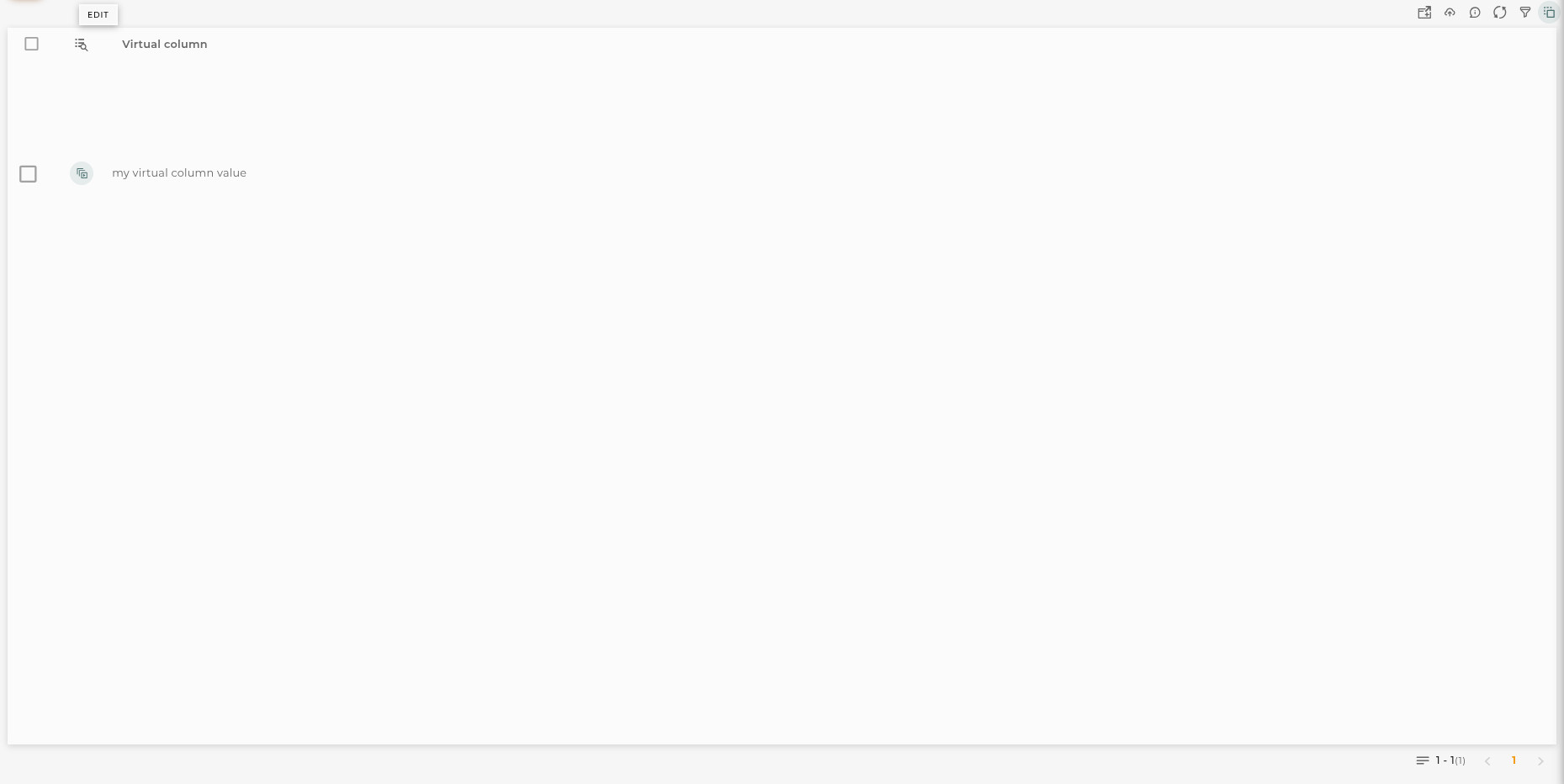

Also you can add virtual columns to lists.

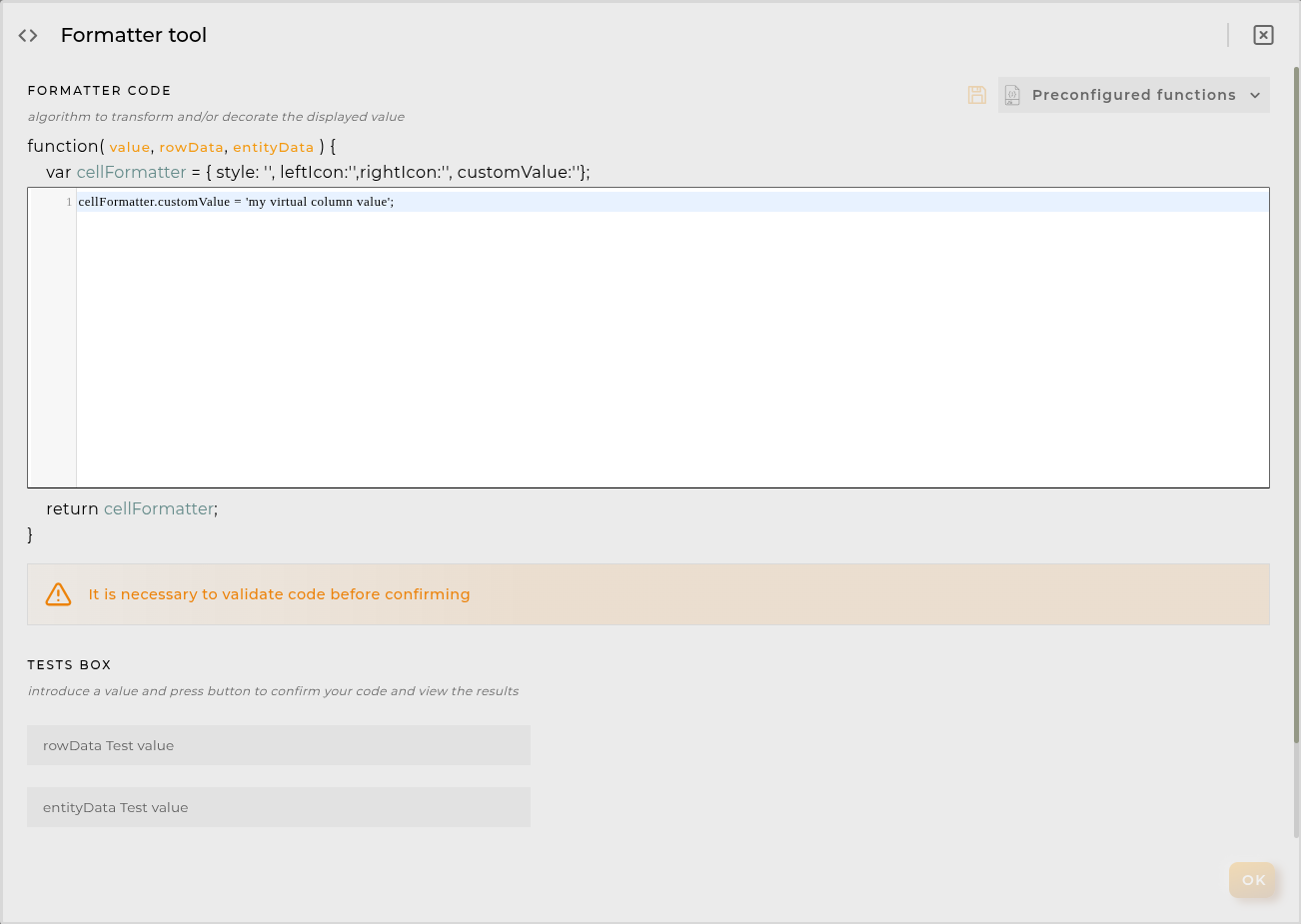

These columns do not have their own values and must be configured in the column formatter once added.

Please note that the contents of this column will never be output to CSV, as it is calculated on the fly and does not rely on any native platform resources.

Button columns

Also you can add button columns to lists in order to execute some custom action related with the row data.

Button label can be setted in normal or virtual columns. Label will be the value.

Button action code receives the complete rowData and you can open other dashboards, entities dashboards or execute wizards.

You can find all available functions and methods in Extra parameters

Resource Configuration

Execution listings will be displayed for only one type of entity.

By default, entities of the type Device will be displayed.

Advanced

In this section, you will configure various filters that will be applied to queries regardless of the user’s specific filtering preferences.

Here you can define how widget filters should behave when sharing the dashboard with other users/organizations. This means that when sharing, a user opens these dashboards and won’t see the filters applied to the original dashboard in the specified widgets, preventing the information displayed from changing after a dashboard refresh.

The three possible options are:

Don’t share the widget’s general filter
Don’t share header filters in lists
Don’t share sorting in lists
