Allows scheduling the execution of an image.

Steps

Image Execution Form

Essential data for registering and identifying an image execution in the platform.

Not all fields are mandatory.

Identifier: The email address must be valid.

Name: The name of the image.

Tag: The tag of the image.

Max time for execution: The maximum time to wait for the execution to complete.

Max wait for callback: The maximum time to wait for the callback to complete. This value must be greater than the max time for execution.

Environment variables: Environment variables to be used for the execution.

Planification

There is two options for planification:

Cron Expression

Cron expression: The cron expression to be followed.

Timezone: The timezone to be used for the cron expression.

Interval

Interval (minutes): The interval in minutes to be followed.

Both options are mutually exclusive. Also you can define a start and end date for the schedule.

From Date: The date when the schedule should start.

To Date: The date when the schedule should end.

Finally you can mark the Execute now checkbox to execute the request immediately after creation apart from the schedule.

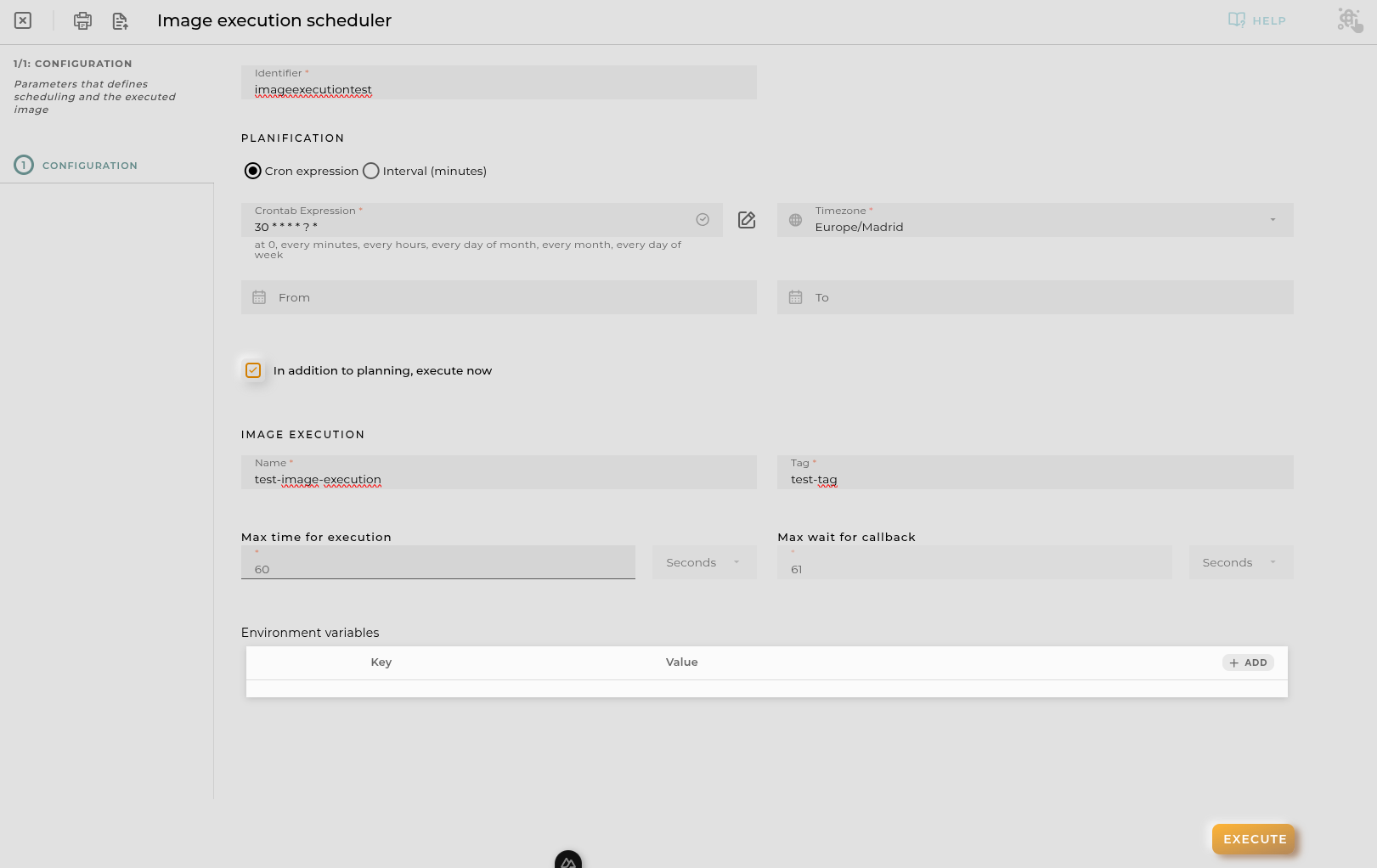

Creation

Import/Export Configuration

Allows you to import and export the wizard’s configuration via JSON.

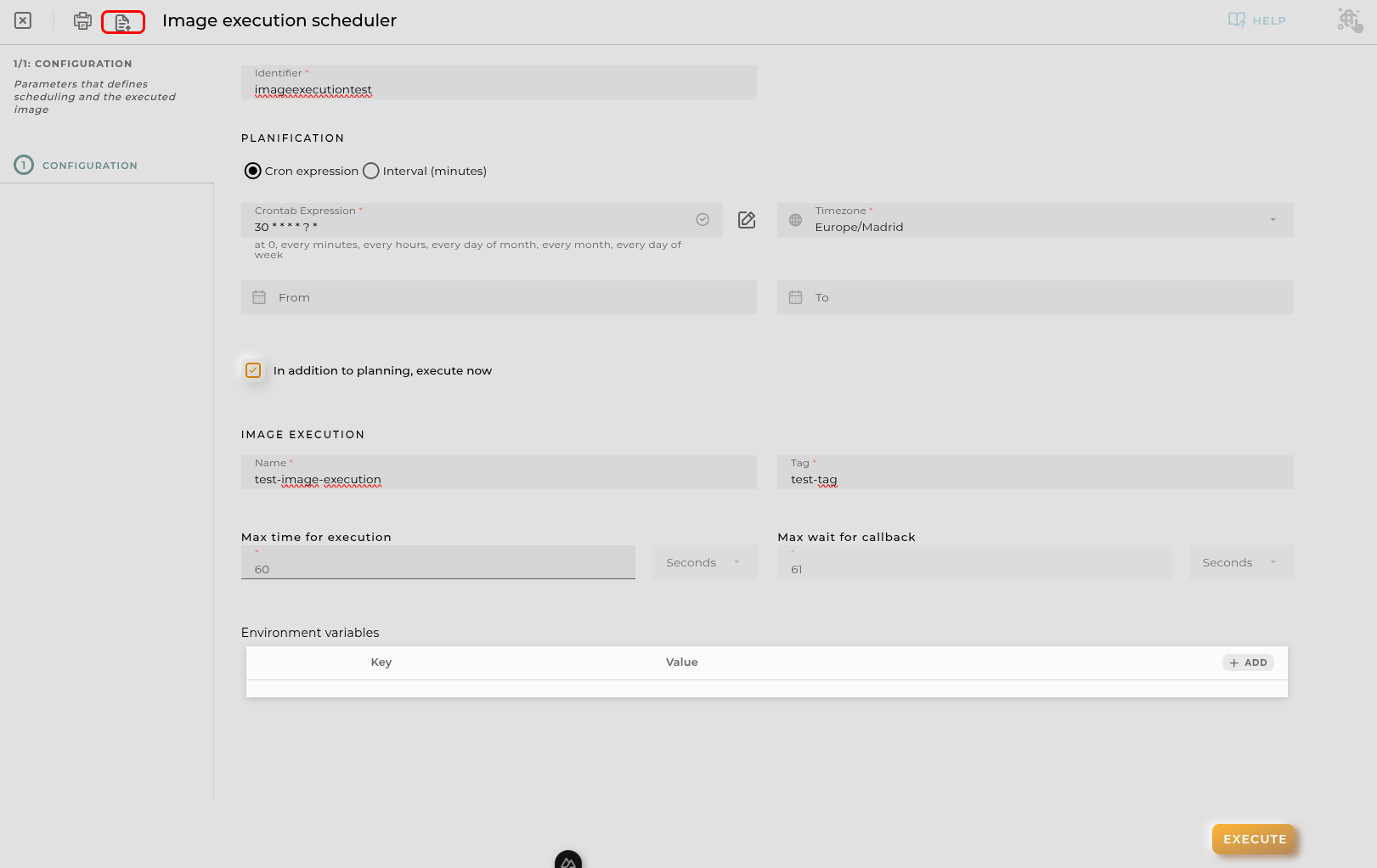

btnJson

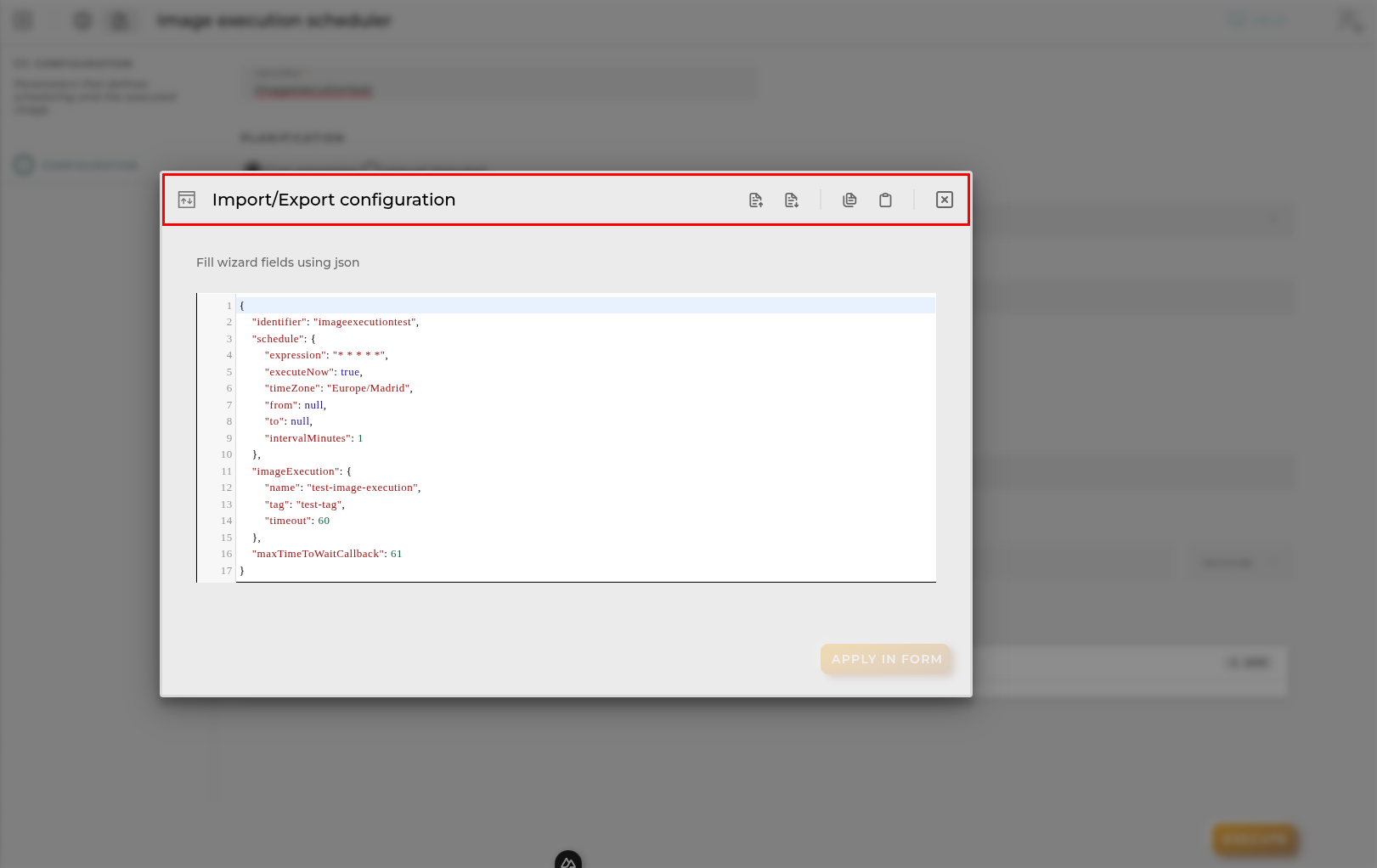

When accessing the import and export functionality, it displays a window with various actions. Additionally, it presents the configuration of the wizard in JSON format.

The available actions are as follows:

  • Upload Json: Uploads a JSON file and replaces the previous JSON configuration.
  • Paste from clipboard: Pastes JSON data from the clipboard and replaces the previous JSON configuration.
  • Download Json: Downloads the JSON configuration as a file with the wizard’s name.
  • Copy to clipboard: Copies the JSON configuration to the clipboard.
items
