Allows scheduling a Pipeline Processor. With a pipeline processor you can execute multiple pipelines and rest requests in a scheduled way.

Steps

Pipeline Processor Form

Essential data for registering and identifying a pipeline processor in the platform.

Identifier: The identifier of the pipeline processor.

Image Executions: The images to be executed.

Rest Requests: The rest requests to be executed.

Each one will be executed in sequence. You can reorder the sequence by dragging and dropping the items. It requires at least 2 items in pipeline.

Planification

There is two options for planification:

Cron Expression

Cron expression: The cron expression to be followed.

Timezone: The timezone to be used for the cron expression.

Interval

Interval (minutes): The interval in minutes to be followed.

Both options are mutually exclusive. Also you can define a start and end date for the schedule.

From Date: The date when the schedule should start.

To Date: The date when the schedule should end.

Finally you can mark the Execute now checkbox to execute the request immediately after creation apart from the schedule.

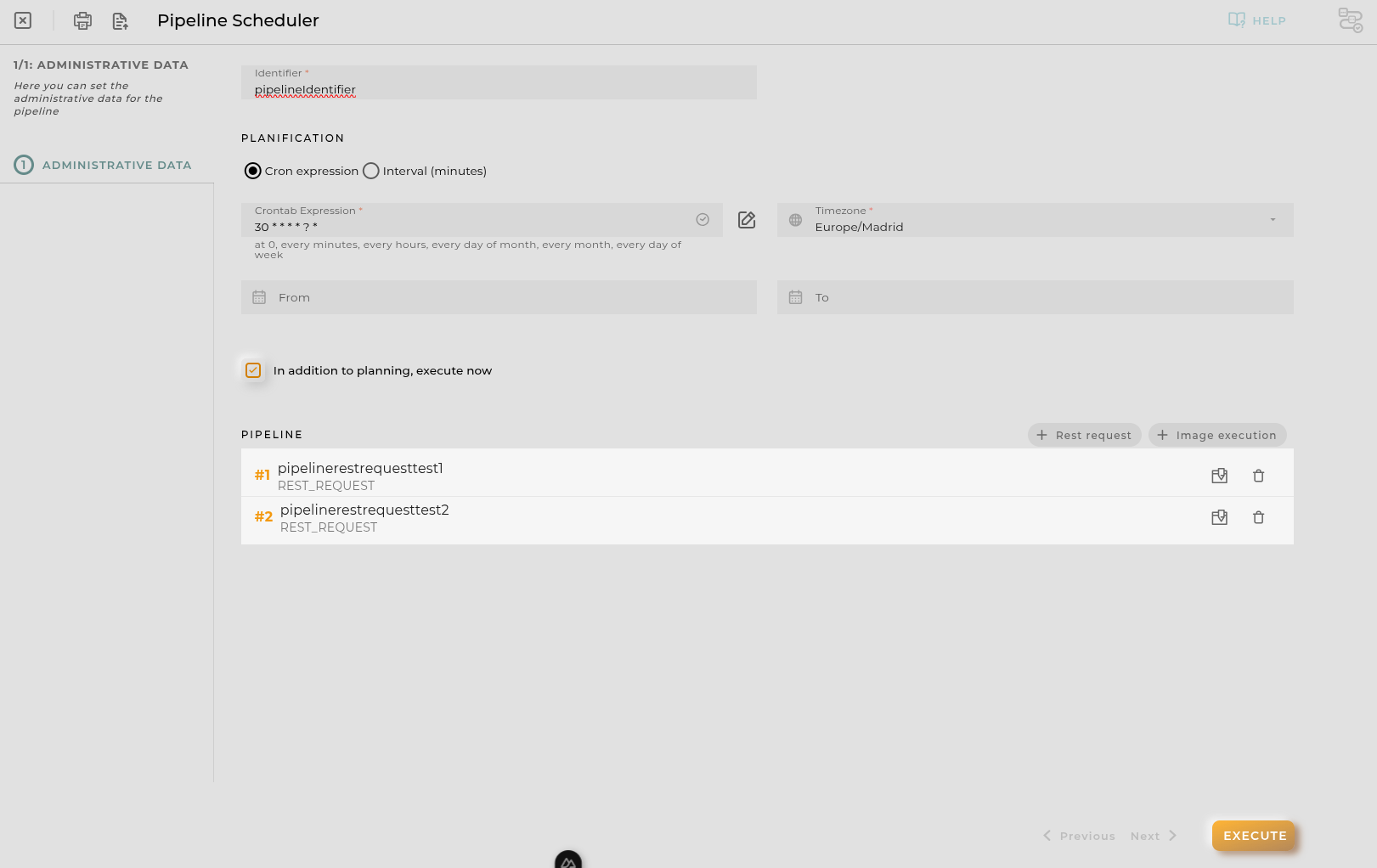

Creation

Import/Export Configuration

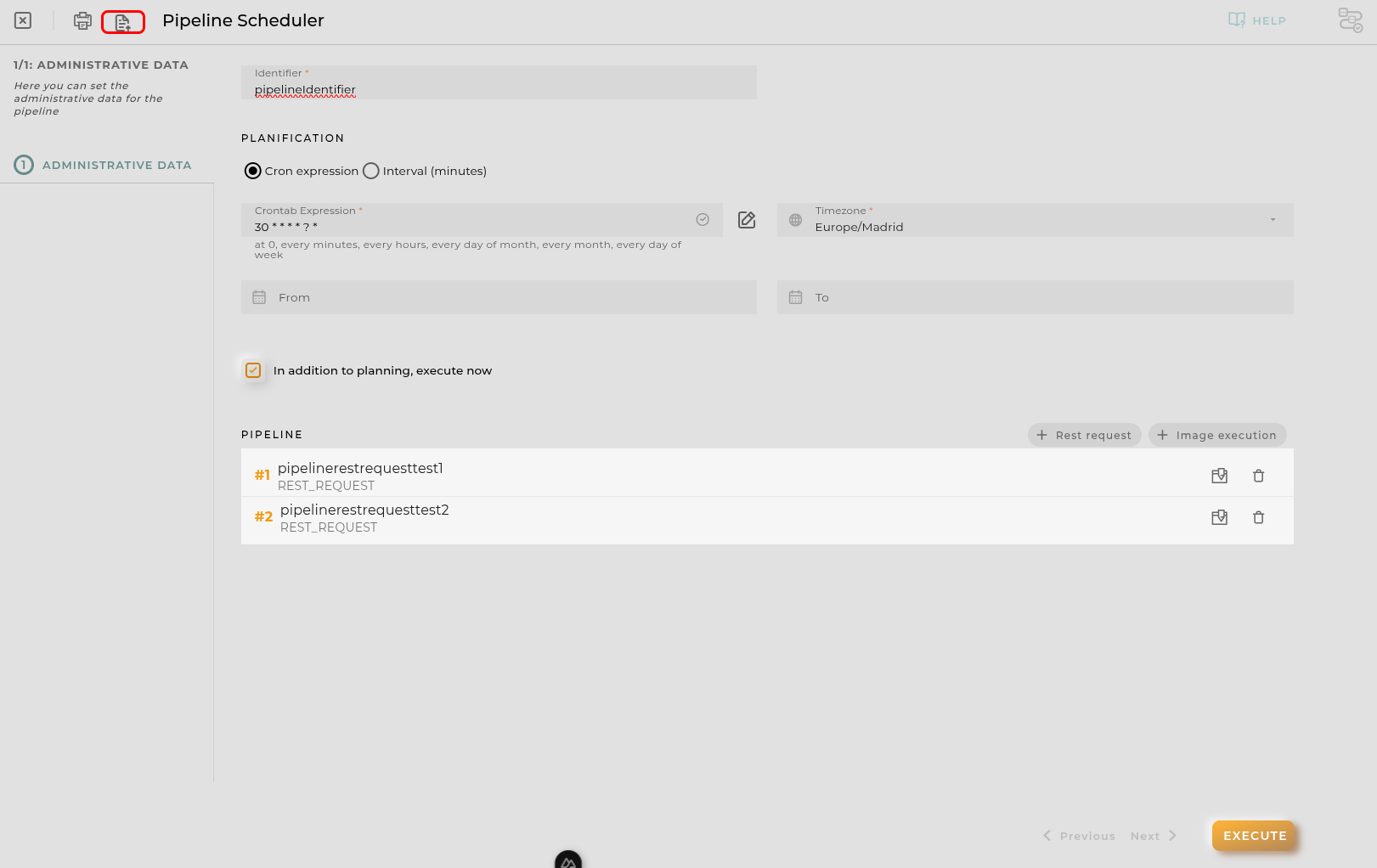

Allows you to import and export the wizard’s configuration via JSON.

btnJson

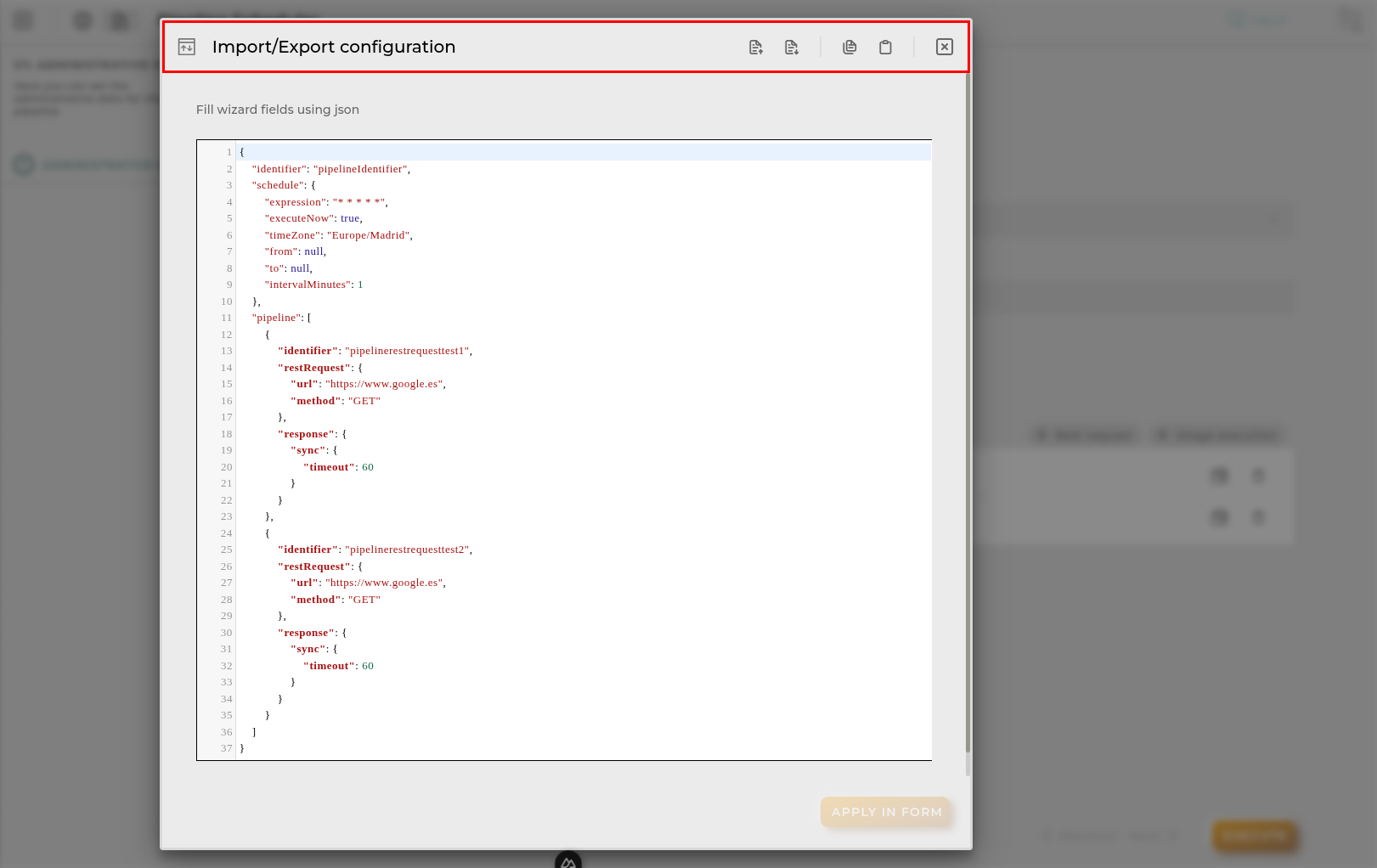

When accessing the import and export functionality, it displays a window with various actions. Additionally, it presents the configuration of the wizard in JSON format.

The available actions are as follows:

  • Upload Json: Uploads a JSON file and replaces the previous JSON configuration.
  • Paste from clipboard: Pastes JSON data from the clipboard and replaces the previous JSON configuration.
  • Download Json: Downloads the JSON configuration as a file with the wizard’s name.
  • Copy to clipboard: Copies the JSON configuration to the clipboard.
items
